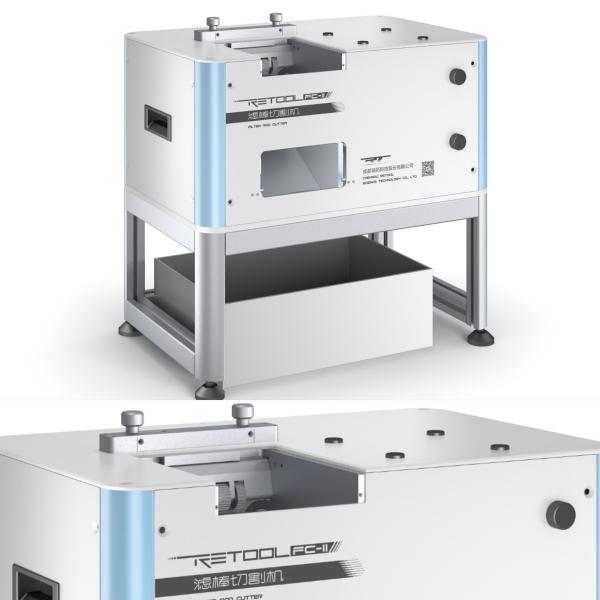

Filter-Rod Cutter Cigarette Production Machine Automatic Mode High
Speed
Company details
Chengdu Retool Science & Technology Co., Ltd., as a well-known
professional manufacturer of physical test equipment for tobacco in
China, has a development history of three decades. Chengdu Retool
Technology lndustrial Co., Ltd. was founded in 1996, and Chengdu
Retool Science & Technology Co, Ltd. was founded in 2015 after
shareholding reform, and was successfully listed in the national
EME share transfer system in March 2016.As a nationally recognized
outstanding high-tech enterprise, the company has a strong
technical basis and advanced equipment and is a base for
researching and manufacturing
optics-machinery-electronic-computer-automatic apparatus and
equipment. Retool Co., Ltd. will always be dedicated to product
quality, services, and innovation and will strive for excellence.
With the continuous development of the tobacco industry, Retool
Co., Ltd. will insist in researching and developing higher-level
tobacco physical test equipment and automatic equipment for tobacco
industries at home and abroad, with advanced technologies and
stable quality as the goal. We would like to cooperate with you
sincerely to win the splendor prospects in the future!
Performances and features of the product
As a professional tobacco equipment, our machines have the
following main features, have absolute advantages
1. It is used for breaking and cutting the filter rod, dividing the
filter rod into two or other segments (to be customized);
2. Small occupied space, simple operation, convenient use and
stable performance;
3. One-key start/stop, which is easy to operate;
4. Batch cutting, fast working speed;
5. The cutter is hidden inside the machine, so there is no
potential safety hazard, and it can be placed on the production
site to work;
6. It has emergency stop button, and automatic door-opening stop
function, high safety;
7. The cross section ofthe cut sample is flat;
8. Suitable for cutting acetate fiber filter rods, polypropylene
fiber filter rods and polylactic acid fiberfilter rods;
9. Advanced design integrating feeding, cutting, separation and
other processes;
10. The filter rod length has a wide compatible range, and the
cutting length can be adjusted;
11. Large capacity hopper can be added to realize continuous work.
Main Key technical indexes
| Blade size | 80 x 10 x 0.3mm in the middle |
| Cutting speed | 2000rpm |
| Error of cutting position | ± 0.5mm |
| Cutting position range | the position of filter rod is 45 〜75 mm |
| Capacity | 200 hoppers |
| Operation mode | one-button automatic operation |
| Material feeding and discharging mode | automatic |
| Adjustment mode of cut-off position | manual |
| Cutting position error | ± 0.5mm |
| Minimum cutting speed | 150 pieces/minute |
| Cutting mode | All four, all six, and other filter rod cutting modes can be
flexibly customized according to the requirements |
| Sample length range | 90 ~ 150 mm |
| Circumferential range of sample | 24 ~ 26 mm (other specifications need to be customized) |
| Suitable sample types | Acetate fiber filter rod, polypropylene fiber filter rod,
polylactic acid fiber filter rod, etc. |
AFTER Sales service
Once you purchase our products, we will provide professional
after-sales service, including but not limited to
1. Video guide for debugging and use: We will provide the operation
video of the machine installation and use, so that you can operate
completely without doubt
2. One-year warranty: Our product warranty lasts for one year, during this period, you
have any questions, you can contact us at any time
3. Our after-sales staff are professional and online all the time
