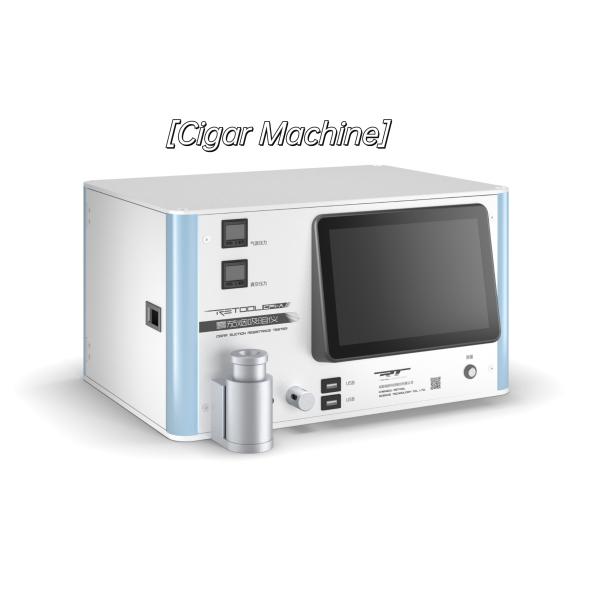

AC220V Cigar Suction Resistance Tester Cigar Machine Cigars
Automatic Electric
Company details
1.Chengdu Retool Science & Technology Co., Ltd., as a well-known
professional manufacturer of physical test equipment for tobacco in
China, has a development history of three decades. Chengdu Retool
Technology lndustrial Co., Ltd. was founded in 1996, and Chengdu
Retool Science & Technology Co, Ltd. was founded in 2015 after
shareholding reform, and was successfully listed in the national
EME share transfer system in March 2016.As a nationally recognized
outstanding high-tech enterprise
2. the company has a strong technical basis and advanced equipment
and is a base for researching and manufacturing
optics-machinery-electronic-computer-automatic apparatus and
equipment. All the product series developed by the company has been
approved by the National Tobacco Monopoly Bureau, physical test
equipment of the company have been widely used by domestic and
foreign tobacco factories, filter plants and tobacco quality
supervision departments at all levels, and you will be fully
guaranteed with high product quality and cost performance. 3. The
company specializes in physical parameter test equipment for
various cigarettes/filter rods, on-line automatic sampling systems
for cigarettes/filter rods, test equipment for various raw
materials and auxiliary materials, test equipment, and automatic
equipment for various new materials including filter capsule
products for tobacco.
Functions and characteristics of instruments
1. It is suitable for the smoke resistance detection offinished
products and tobacco embryos of handmade cigars/machine- made
cigars;
2. The instrument adopts CFO gas flow constant current device to
ensure the stability of gas flow;
3. The instrument adopts imported high-precision air pressure
sensorto ensure the detection accuracy ofthe instrument;
4. The instrument is imported into latex tube with high elasticity
to ensure the effective package of cigarettes;
5. The instrument adopts replaceable test heads, and cigarettes
with different circumferences can be compatible in a wide range by
replacing the test heads;
6. The instrument has built-in temperature and humidity sensor to
realize real-time monitoring ofthe detection environment;
7. The built-in calibration method ofthe instrument is adopted to
realize one-key calibration, and the operation is simple and
convenient;
8. Graphical operation interface, industrial flat touch operation,
easy to learn;
9. The display unit can be switched to meet the needs of different
users;
10. Support data storage, query, import, export, data printing, USB
interface and network interface.
11. The instrument has internal dual calibration gas path, only one
key can complete the calibration function.
12. The instrument has self-developed clean gas path, which can be
cleaned by one button without external operation.
Technical Specifications
| Applicable samples | handmade cigars/machine-made cigars, tobacco embryos orfinished
products |
| Specifications | L: 90~210mm |
| Diameter | 12~23mm |
| customized | yes |
| Suction constant current | 17.5±0.1 ml/s |
| Range | 0 ~ 2500 Pa |
| Measurement value display accuracy | 10pa |
| Resolution | 1 pa |
| Sample suction time | settable |
| Size | 430mm(L) x 480mm(W) x 360mm(H) |
| Weight | 22kg |
Working environment requirements
| Working ambient temperature | +10°C to +40°C (recommended ambient temperature is 22 ± 2°C) |
| Humidity | 60±5%RH |
| Power supply | AC220V ±10% 50Hz± 5% |
| Gas source requirements | Positive pressure ≥0.5mpa,flow ≥0.3m3/min, air source should be
dried and filtered |
packing and delivery
Our products comply with strict packing and delivery standards. We
will adopt the most suitable transportation methods, including sea
transportation, air transportation and land transportation
